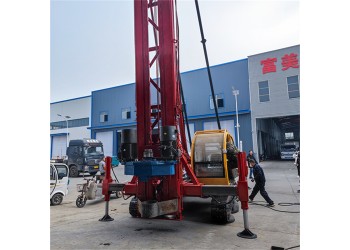

可定制18米長螺旋打樁機 履帶式地基樁機 抗浮錨桿打樁機

塔架tower

18米（伸縮）18m (telescopic)

油泵電機Oil pump motor

22kw

液壓泵Hydraulic pump

40-40-30（三聯）40-40-30 (triple)

行走方式Walking mode

履帶track

操作方式Operation mode

遙控remote control

動力頭Power head

22kw - 22kw

卷揚機windlass

4kw

加壓方式Pressurization mode

雙油缸加壓Double cylinder pressurization

履帶底盤Crawler chassis

4*2.8m（鋼制）4 * 2.8m (steel)

履帶板寬Track shoe width

450mm

駕駛室cab

單人封閉式Single enclosed

液壓支腿Hydraulic Outrigger

四條（行程1.5m）Four (stroke 1.5m)

塔架支腿Tower leg

兩條（行程50cm）Two (stroke 50cm)

散熱器radiator

強風散熱Strong wind heat dissipation

配重Counterweight

可伸縮Scalable

回旋角度Angle of gyration

360°

行走馬達Travel motor

液壓hydraulic pressure

變幅缸Luffing cylinder

兩條Two

斜拉桿Diagonal tie rod

兩條Two

電器件Electrical parts

正泰chint

電纜線Cable

內置built-in

運輸尺寸Transportation size

12*2.8*3m

工作尺寸Working size

9*3.8*18m

重量weight

14T

發電機組Generator Set

150kw（特斯拉6110）；可定150KW (Tesla 6110); Determinable

功能：抗浮錨桿、水泥攪拌樁、潛孔、CFG灌漿、引孔、高壓旋噴、勘探等Functions: anti floating anchor rod, cement mixing pile, DTH, CFG grouting, pilot hole, high-pressure jet grouting, exploration, etc

注：詳細資料請咨詢客服！
