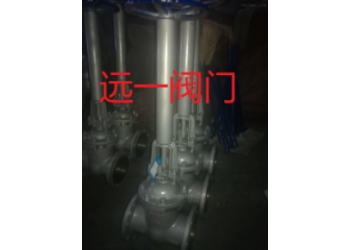

加長桿鑄鋼閘閥Z41H-16C/Z41H-25Z41H-40

加長桿鑄鋼閘閥產品說明
Z41H-16C/Z41H-25/Z41H-40/Z41H-64/Z41H-100/Z41H-160加長桿鑄鋼閘閥：手動、電動、法蘭連接、明桿楔式彈性閘板，閥座密封面材料為不銹鋼、硬質合金，工作壓力 1.6~16.0MPa，閥體材料為鑄鋼（Z41H-16~160 Z41Y-16~160）、鉻鉬鋼（Z41Y-16I~160I）、不銹鋼（Z41W-16P~160P）的閘閥。
加長桿鑄鋼閘閥產品性能參數
型號PN工作壓力 / MPa適用溫度 / ℃適用介質
Z41H-10010010.0≤ 425水、蒸汽、油品
Z41H-16016016.0
Z41Y-10010010.0
Z41Y-16016016.0
Z41Y-100I10010.0≤ 550蒸汽、油品
Z41Y-160I16016.0
Z41W-100P10010.0≤ 200有腐蝕性
Z41W-160P16016.0

加長桿鑄鋼閘閥產品零部件材料
型號材料
閥體、閥蓋、閘板閥桿密封面填料
Z41H-100碳素鋼鉻不銹鋼堆焊鐵基合金石棉石墨或柔性石墨
Z41H-160
Z41Y-100堆焊硬質合金
Z41Y-160
Z41Y-100I鉻鉬鋼鉻鉬鋼堆焊硬質合金石棉石墨或柔性石墨
Z41Y-160I
Z41W-100P鉻鎳鉬鈦不銹鋼鉻鎳鉬鈦不銹鋼堆焊硬質合金聚四氟乙烯
Z41W-160P

加長桿鑄鋼閘閥產品外形及結構尺寸 （PN100）
DNLDD1D2D8bz×?dHH1D0重量 / kg
2521013510078501244×?18310——13
322301501108265244×?23320——20
402401651259575264×?23360——60
5025019514511285284×?2549055836050
65280220170138110328×?2554062240070
80310230180148115348×?25572671400100
100350265210172145388×?30573671400110
125400310250210175428×?34744892560180
1504503502902502054612×?34800972560250
2005504303603122655412×?41800972560360
2506505004303823206012×?4110501305——
3007505855004423757016×?4812001505——

加長桿鑄鋼閘閥產品外形及結構尺寸 （PN160）
DNLDD1D2D8bz×?dHH1H0重量 / kg
15170110755235244×?182302502007
20190130906245264×?2326028820010
252101401007250284×?2328031028014
322301651158565304×?2531235032021
402601751259375324×?2735039532026
5030021516513295368×?2551261236073
65360245190152110448×?30560677360110
80390260205168130468×?30585686400141
100450300240200160488×?34631751450185
125525355285238190608×?41723868560320
1506003903182703056612×?41820997640462
2007504804002452657812×?489901224720711
